Multi-split air conditioning system

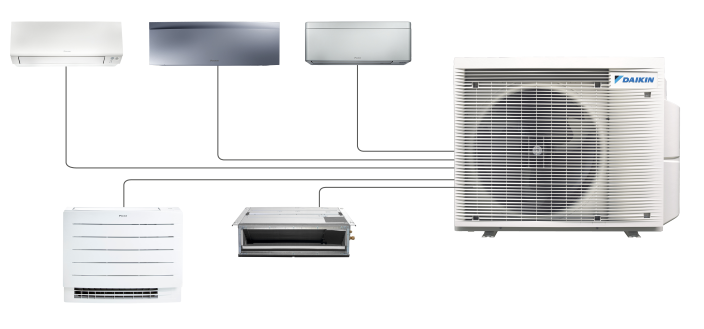

A multi-split air conditioning system is a heating and cooling solution that connects multiple indoor units to a single outdoor compressor unit.

Unlike a single-split system, which uses one indoor unit per outdoor unit (one-to-one), the multi-split system allows one outdoor unit to effectively manage the climate control for two, three, four, or even five different rooms or zones in a home or building.

🏠 Key Characteristics

  • Single Outdoor Unit: The system consolidates the noisy, bulky compressor and condenser into one central unit, saving valuable outdoor space and maintaining better aesthetics.
  • Multiple Indoor Units: Each indoor unit (often called a "head") is placed in a separate room or zone that needs climate control. These indoor units can be different types, such as wall-mounted, ceiling cassette, or floor-mounted, to suit the room's layout.
  • Independent Control (Zoning): The greatest advantage is the ability to individually control the temperature, fan speed, and settings for each indoor unit. This means you can set the living room to 22° while keeping the bedroom at 19°, only cooling or heating the rooms you are using.
  • Ductless Operation: Like single-split systems, multi-splits generally do not require extensive ductwork. The indoor and outdoor units are connected only by small refrigerant lines, power cables, and condensate drains.

Multi-Split vs. Single-Split AC

Feature

Multi-Split System

Single-Split System

Indoor to Outdoor Ratio

Multiple Indoor Units (2 to 5+) to 1 Outdoor Unit

1 Indoor Unit to 1 Outdoor Unit

Outdoor Aesthetics

Minimal—Only one unit takes up space outside.

Cluttered—Requires multiple units for multiple rooms.

Zoning/Control

Independent temperature control for each room.

Controls only the single room where the unit is installed.

Upfront Cost

Generally higher (more complex components/installation).

Generally lower per unit.

Failure Risk

If the central outdoor unit fails, all zones lose service.

If one outdoor unit fails, only that room loses service.



The multi-split system is an excellent choice for homes or apartments where multiple rooms need cooling or heating, but outdoor space is limited, or the owner wants to maintain a cleaner exterior appearance.

You can learn more about these systems in this video: Mini Split vs. Multi Split Air Conditioning Systems: Which One is Right for You? This video compares single-split (often called mini-split) systems with multi-split systems to help viewers decide on the best air conditioning option.
