Daikin

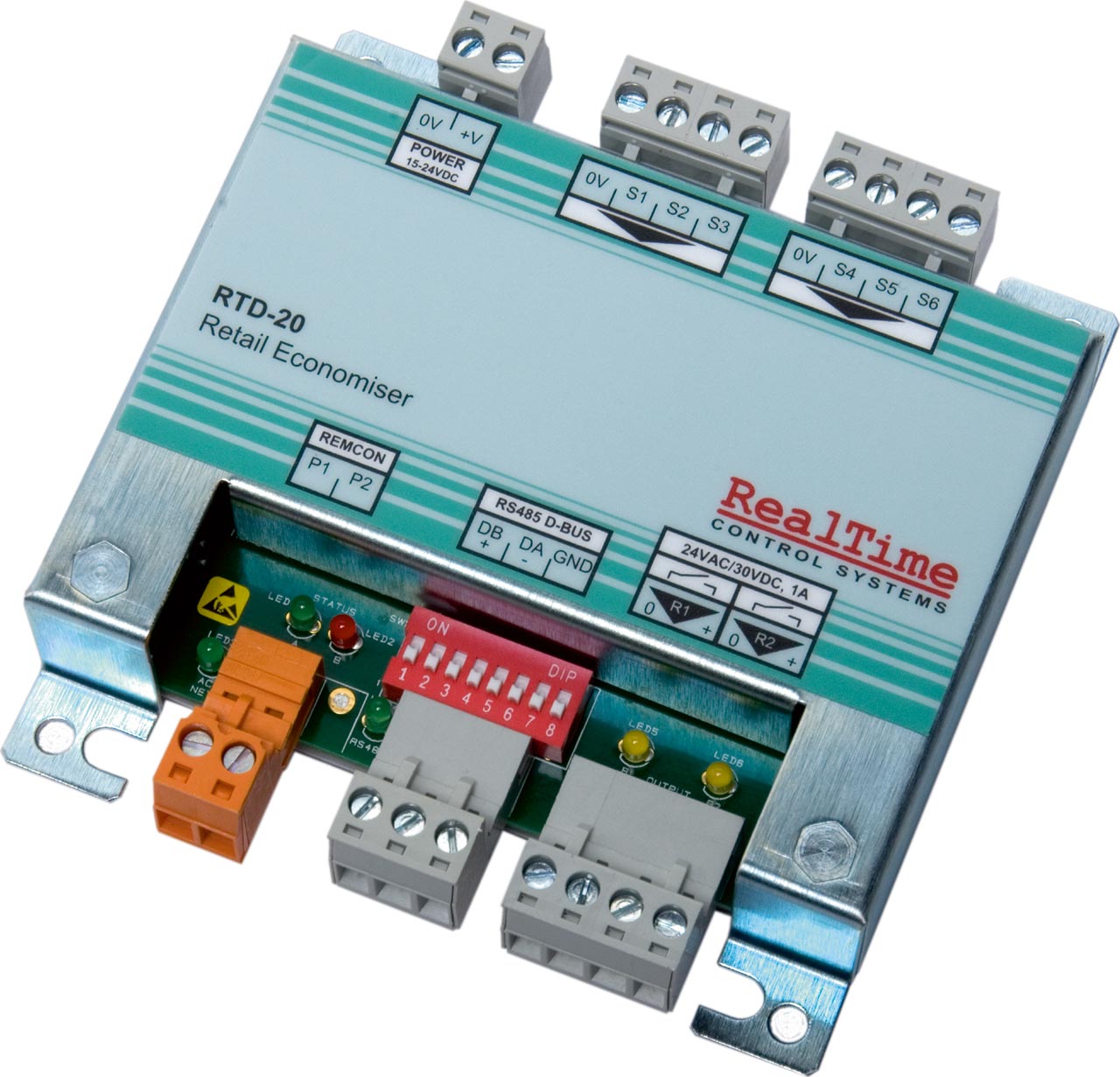

RTD-20 - RTD - Universal control
RTD-20 - RTD - Universal control
Regular price
£347.00
Regular price
Sale price
£347.00
Taxes included.
Shipping calculated at checkout.
SKU:RTD-20
Quantity
Couldn't load pickup availability
Product features
- For retail applications
- Advanced control of Sky Air, VRV, VAM/VKM and air curtains
- Easy operational management of zones or independent units
- Increased comfort with integration of CO2 sensors for fresh air volume control
- Save on running costs via pre/post trade mode, set point limitation, overall shut down
| RTD-20. | |||||
|---|---|---|---|---|---|
| Ambient temperature | Relative humidity < | % | 90 | ||
| Storage | Min. | °C | -10 | ||
| Max. | °C | 50 | |||
| Operation | Min. | °C | 0 | ||
| Max. | °C | 50 | |||
| Communication | Protocol | Wiring length | Max. | m | 500 |
| Type | RS485 (modbus) | ||||
| P1-P2 connection | Yes | ||||
| Input terminal | Voltage or Resistance | Quantity | 6 | ||
| Voltage | Type | 0..10VDC < 1mA | |||
| Resistance | Type | 5V, 1mA | |||
| Wiring length | Max. | m | 1 | ||
| Dimensions | Unit | Width | mm | 100 | |
| Depth | mm | 22 | |||
| Height | mm | 100 | |||
| Relay | 1A, 24VAC max, 1A, 30VDC max | ||||
| Power supply | Voltage | V | 15V-24V DC | ||
